NW Conversions 20 Gallon Wheel Well Water Tank - Right (SP-R-20)
The 20 gallon wheel well water tank is designed to use the wasted space around the well. It is designed to fit the Sprinter 2500 and also fits the Sprinter T1N and Transit single rear wheel vans. The tank can also fit other vehicle makes and models. Tank measurements are 45” long x 16” tall x 12.5” deep.
-
20 Gallon Water Tank (SP-R-20)
-

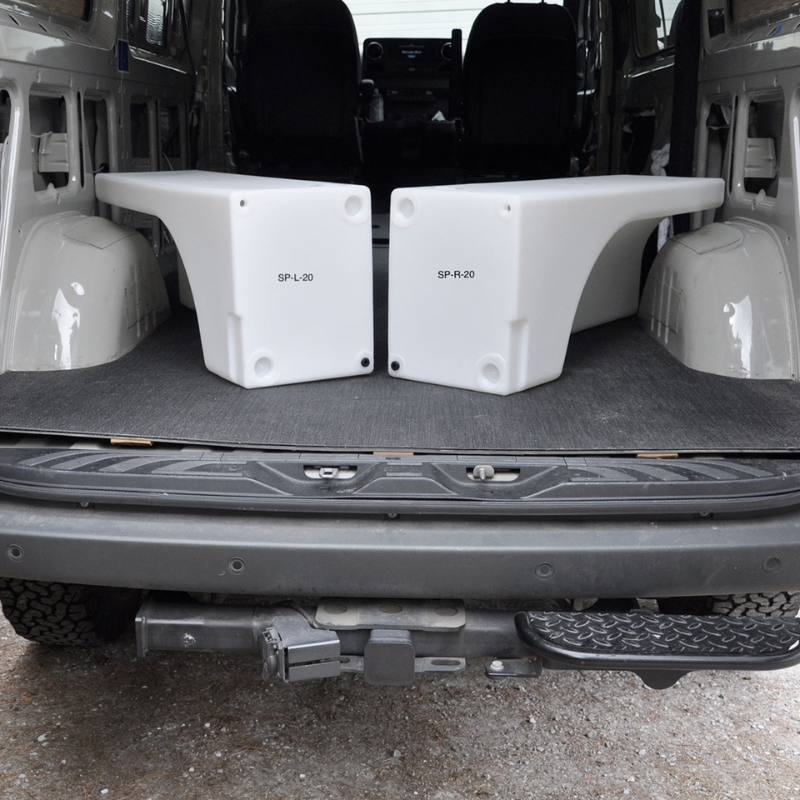

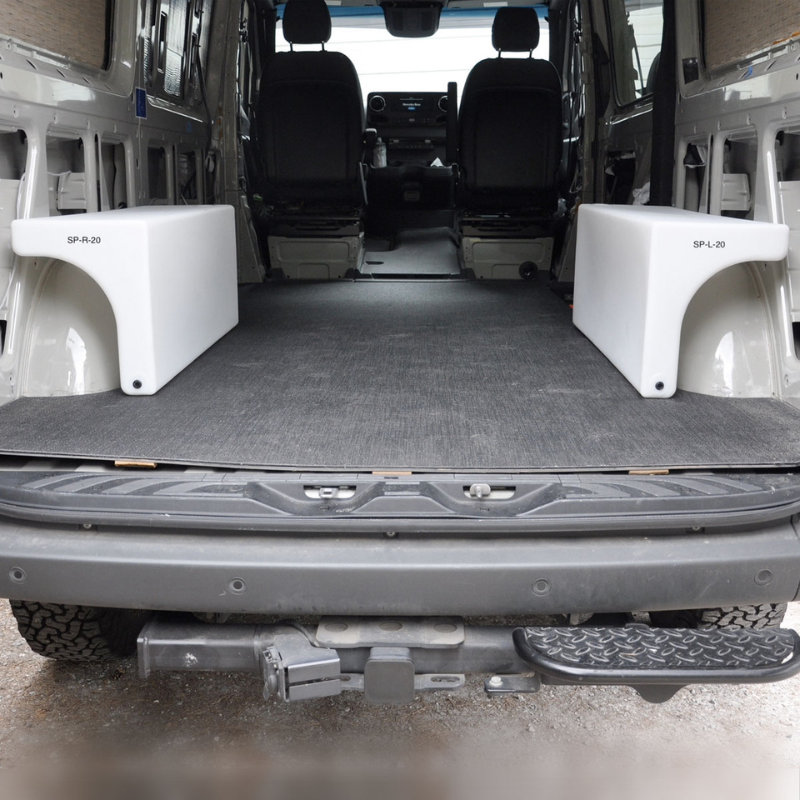

Can be placed either driver or passenger side
- If placed passenger side the tank sits with majority rear of wheel well and flush to front of wheel well.
- If placed driver side the tank sits with majority front of wheel well and flush to rear of wheel well.
- 45” long, 12.5” deep, 16” tall
-
Designed to fit Sprinter Van
-
TRANSIT Van wheel wells are slightly smaller than the Sprinter so there is a bit more room for insulation around wheel well.
-
**PROMASTER** needs to be elevated 3.5" to fit the large wheel wells.
-

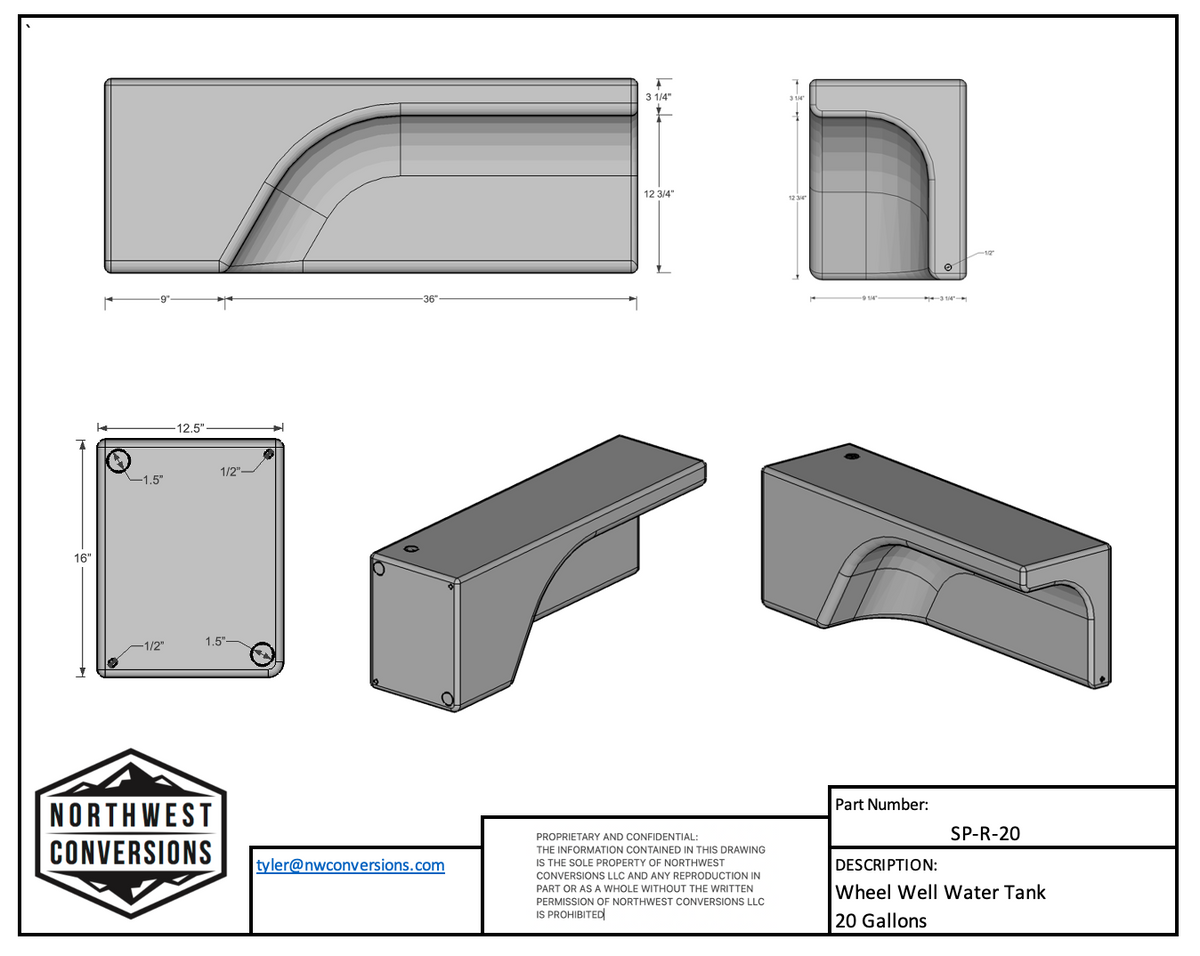

Tank has (2) 1.5” NPT ports (need to be drilled out) and (2)1/2” NPT ports on rectangular end. (1) 1/2" Port on bottom of open end.
-
Tank has (1) 1.5” NPT port (needs to be drilled out) on top or fill or level sensor.
- Tank is designed not to be pressurised (I.e. Needs to be vented).
- Tanks are made from BPA Free Food Grade Plastic
- Made in the USA
Weight: 27 lbs
Dimensions: 45 x 13 x 16 in
