24V 230Ah V2-T Elite Series LiFePO4 Battery (5.89kWh)
Class-T protection · Victron CAN · Heated · Bluetooth
Epoch 24V 230Ah V2-T Elite Series LiFePO4 | Built-In Fuse, Victron & BT
A premium 5.89kWh lithium battery for advanced marine, RV, Victron, and 24V off-grid solar systems.
The Epoch 24V 230Ah V2-T Elite is a high-capacity 24V 230Ah LiFePO4 battery engineered around a user-serviceable 300A Class-T fuse, native Victron CANBus communication, internal heating, Bluetooth monitoring, and an IP67 enclosure. Its 5.89kWh energy platform gives system builders a compact, managed battery for demanding marine house banks, RV power systems, and professional off-grid energy storage.
Built for demanding 24V energy systems
A 5.89kWh Energy Vault for Marine and Off-Grid Systems
Premium 24V storage with source protection, managed communications, and scalable architecture.
The V2-T platform is intended for deep-cycle house-power and energy-storage service rather than engine starting. One battery provides 230Ah at 25.6V nominal and supports large 24V loads without the complexity of wiring several smaller batteries in parallel.
The integrated fuse, CAN communication, remote gauge, external power control, heating, and Bluetooth monitoring reduce installation clutter—but installers must still provide the main disconnect, properly selected downstream overcurrent protection, branch fusing, busbars, conductors, securement, precharge where required, and a complete commissioning plan.
Safety: The V2-T Class T Fuse
High-interrupt source protection, managed BMS safeguards, and a sealed serviceable enclosure.

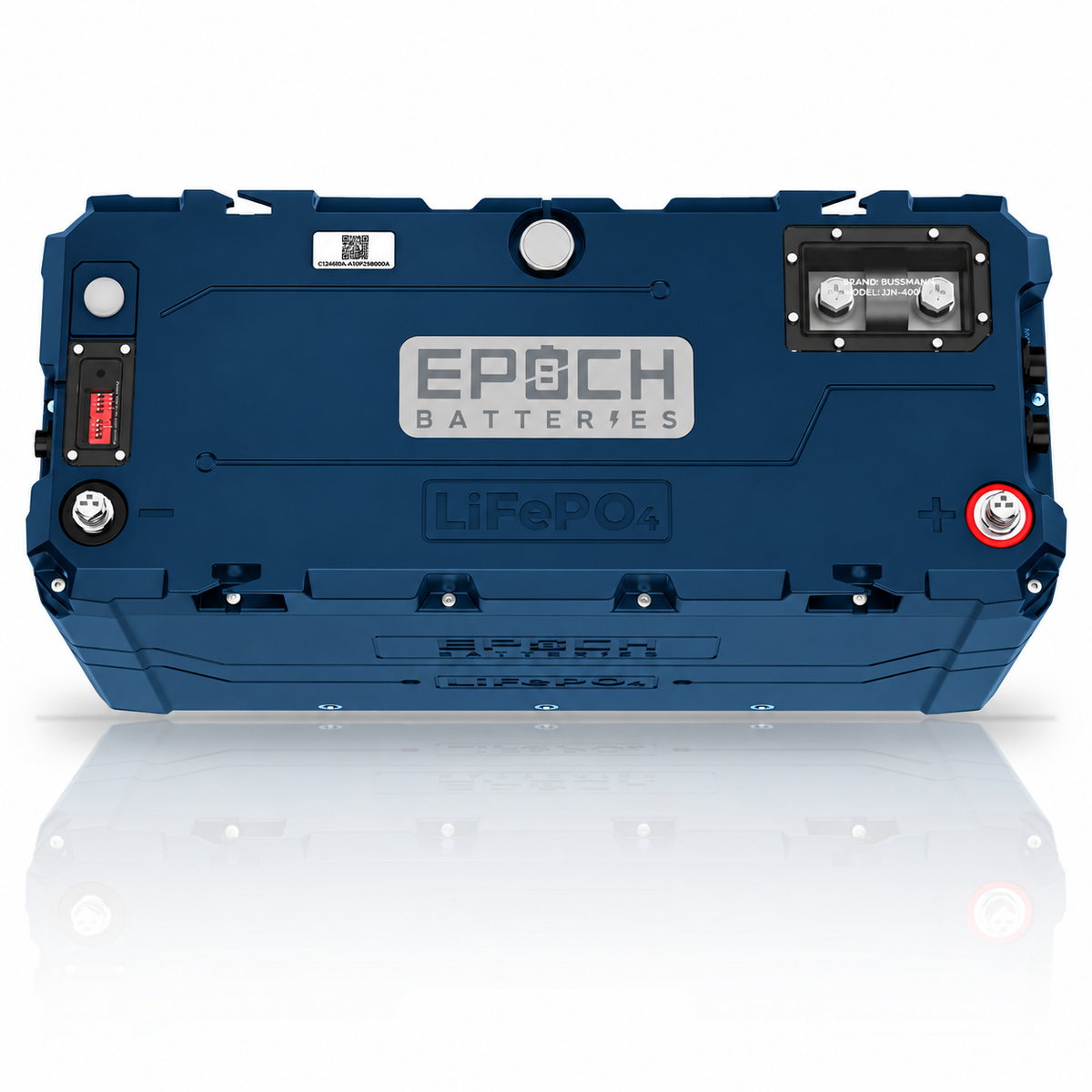

User-Serviceable 300A Class-T Fuse
The Eaton Bussmann JJN-300 has a 20kA interrupting rating at 160V DC and sits under a protected service cover on the lid. It reduces fault energy at the battery outlet, but it does not replace the main disconnect or downstream cable and branch protection: install a DC-rated fuse or breaker in the positive conductor, as close to the battery as practical.
Advanced BMS and Published Safety Listings
The embedded BMS supervises cell voltage, current, temperature, protection events, and balancing. Epoch publishes UL1642, UL9540A, and IEC 62619:2022 cell references, plus CE, RoHS, and fuse-related listing information.

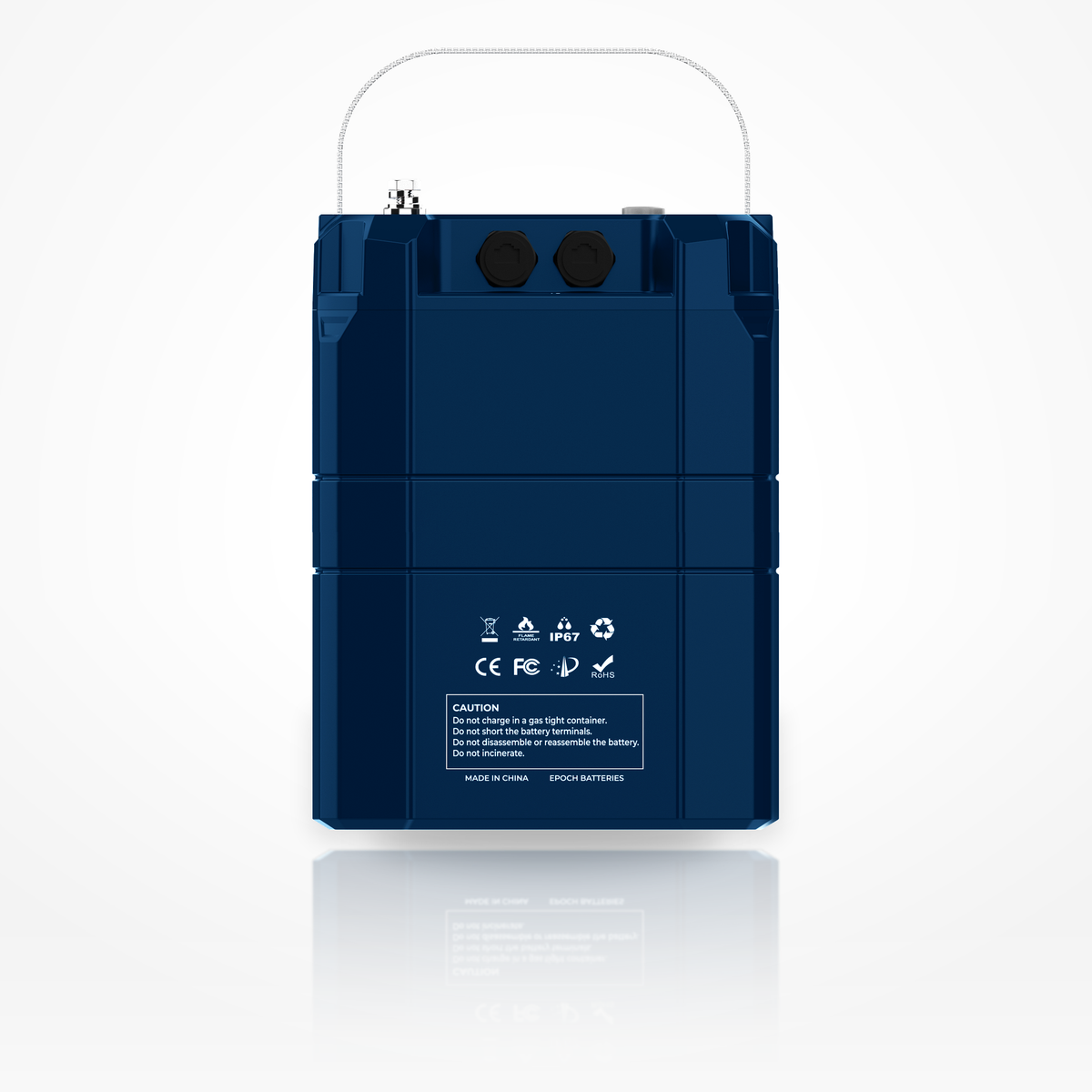

IP67 Dust-Tight, Immersion-Rated Enclosure
The enclosure is dust-tight and rated for temporary immersion up to 1 meter for up to 30 minutes when every seal and gland is correctly installed. Treat IP67 as an ingress-protection test rating—not permission for permanent submersion, standing-water installation, water jets or pressure washing. Install the battery where it stays dry in normal use.
Premium Smart Features and Seamless Integration
Managed Victron charging, cold-weather operation, and real-time battery visibility.
Native Victron Integration via CANBus
The BMS communicates at 500kbit/s through the specified battery harness. A correctly configured Cerbo GX or Ekrano GX can use Epoch as the controlling BMS and battery monitor with DVCC enabled, allowing the battery to publish managed operating data and charging limits to the Victron system.
Cold-Weather Ready with Internal Heating
The 153.6W heater is controlled by the BMS. The cells are not charged below 0°C (32°F); while charging, the heater switches on at 5°C (41°F) and off at 10°C (50°F), using incoming charge energy to warm the cells before normal charging proceeds.
Bluetooth App and Physical Monitoring
Monitor state of charge, cell voltage, temperature, charge and discharge cycles and system health alerts in the Epoch Cloud app (iOS and Android), over Bluetooth 4.0 through the included battery gauge. The included remote digital gauge and external power button provide local access without opening the battery compartment.
Unrelenting Power and Massive Scalability
High-capacity standalone power with supported series or parallel expansion.
A single battery supports 115A continuous discharge (about 2,944W DC before inverter losses) and 250A for 5 seconds. Size inverters by their DC input current: a 2,000W load through a 90%-efficient inverter draws about 87A. If an inverter's continuous DC input can exceed 115A, add batteries in parallel. Uses include marine hotel loads, 24V trolling-motor and electric auxiliary systems where requirements match, and off-grid loads.
Scale to sixteen batteries in parallel for 3,680Ah and about 94.21kWh at 25.6V nominal, or use up to two matched batteries in series for a 51.2V nominal (48V-class) string, 58.0V at full charge. Mixed series-parallel banks are not supported.
Compatible applications
Marine, Victron, RV, solar, off-grid, and high-capacity 24V power systems.
- ✓ 24V off-grid solar systems for cabins, remote sites, backup power, and stationary energy storage.
- ✓ Victron-based systems using compatible Cerbo GX or Ekrano GX devices and managed BMS communication.
- ✓ Marine house banks for electronics, refrigeration, pumps, navigation, lighting, and other hotel loads.
- ✓ Large RV, expedition vehicle, and commercial mobile power systems using 24V inverter/chargers.
- ✓ 24V trolling-motor or electric auxiliary systems where current, voltage, charging, and manufacturer requirements match.
- ✓ Replacing a Group 8D lead-acid battery, after confirming tray fit, hold-down and lid clearance against 20.86 × 8.65 × 12.06 in.
- ✓ Parallel banks up to sixteen batteries for larger 24V energy-storage systems.
- ✓ Series strings of up to two batteries (51.2V nominal, 48V class), installed to the C24230A-A user manual.
V2-T Elite features
Professional-grade source protection, communications, monitoring, and environmental capability.
Recommended system components
Complete the installation with approved mounting, communications, charging, distribution, and service components.
Marine and ABYC installation note
A built-in Class-T fuse supports system safety—but compliance applies to the complete installation.
Installers searching for an ABYC-compliant marine battery system should evaluate the full design rather than the battery alone. Disconnect accessibility, source and branch protection, unfused conductor length, cable ampacity, securement, ignition-protection requirements, grounding, labeling, compartment conditions, and commissioning must all be addressed under the applicable standards and vessel design.
Technical Specifications
Electrical ratings, Class-T fuse data, communications, dimensions, heating, BMS protection, and charging settings.
| Identification | |
|---|---|
| Brand | Epoch Batteries |
| Product | 24V 230Ah V2-T Elite Series LiFePO4 Battery |
| Model / SKU | C24230A-A |
| Series | Epoch V2-T Elite Series |
| Battery duty | Deep-cycle house power and energy storage; not an engine-starting battery |
| Chemistry | LiFePO4 / lithium iron phosphate |
| Cell configuration | 8S1P |
| Published warranty | 11-year limited warranty: free repair or replacement in Years 1–5, then 40% off MSRP on a replacement battery in Years 6–11. Register within 90 days or keep your proof of purchase. |
| Voltage and Capacity | |
| Nominal voltage | 25.6V |
| Rated capacity | 230Ah |
| Standard stored energy | 5.888kWh / approximately 5.89kWh |
| Maximum voltage (planning) | 29.0V; never charge above 29.0V |
| Minimum voltage (planning) | 20.8V |
| Operating state of charge | 0–100% |
| Internal resistance | ≤16mΩ |
| Self-discharge rate | ≤3% per month |
| Current Ratings | |
| Continuous discharge current | ≤115A |
| Continuous charge current | ≤115A |
| Peak discharge | 250A for 5 seconds |
| Maximum charge, short duration | 180A for 5 seconds; 115A continuous for all charge sources combined |
| Nominal continuous DC output | Approximately 2,944W at 25.6V before inverter losses |
| Standard charge (rating method) | CC ≤0.5C, CV 3.60V per cell (28.8V), end at 0.02C. Use the recommended charger settings below (28.4V absorption, 27.0V float). |
| Integrated Class-T Fuse | |
| Fuse type | User-serviceable Eaton Class-T source fuse |
| Fuse model | Eaton JJN-300 |
| Amperage rating | 300A |
| Interrupt rating | 20kAIC at 160VDC |
| Voltage rating | 300VAC / 160VDC |
| Short-circuit recovery | Replace approved fuse after fault diagnosis and controlled isolation |
| System-design limitation | Internal source fuse does not replace the main disconnect, downstream conductor protection, or branch protection |
| Series, Parallel and Communications | |
| Supported standalone use | Yes |
| Series connections | Up to 2 identical C24230A-A batteries |
| Parallel connections | Up to 16 identical C24230A-A batteries |
| Mixed series-parallel | Not supported |
| Maximum parallel energy | About 94.21kWh nominal (3,680Ah) with 16 batteries |
| Battery communication | Bluetooth 4.0 and CAN-bus 500kbit/s |
| Victron integration | Compatible GX device using the specified BMS communication harness and DVCC configuration |
| Network layout | Daisy-chain; no branches or tee connections |
| Recommended Charging Settings | |
| Bulk / absorption voltage | 28.4V (every charge source, Victron equipment included) |
| Absorption time | 15 minutes per battery in the bank |
| Float voltage | 27.0V |
| Equalization | Off / disabled |
| Temperature compensation | Disabled |
| Victron setup | Configure BMS-Can or VE.Can as instructed, enable DVCC, select Epoch as controlling BMS and battery monitor |
| Backup source programming | Program MultiPlus, Quattro, MPPT, and other charge sources to the same safe values in case CAN communication is lost |
| Temperature and Heating | |
| Charge temperature | 0°C to 50°C / 32°F to 122°F, with heating support |
| Discharge temperature | -20°C to 50°C / -4°F to 122°F |
| Storage, one month or less | -20°C to 45°C / -4°F to 113°F |
| Storage, one year or less | 0°C to 35°C / 32°F to 95°F |
| Heater power | 153.6W |
| Heater voltage | 29.2VDC |
| Charge low-temperature protection | 0°C, with heating |
| Heater activation during charging | 5°C |
| Heater deactivation during charging | 10°C |
| Discharge low-temperature protection | -20°C |
| Mechanical | |
| Dimensions | 20.86 × 8.65 × 12.06 in / 529.8 × 219.8 × 306.3mm |
| Weight | 98.9 lb / 45.86kg |
| Case material | PC + ABS, UL94 V-0 |
| Terminals | M8 bolts |
| Terminal torque | 12N·m / 8.85lb-ft |
| Cooling | Passive convection |
| Ingress protection | IP67; dust-tight and temporary immersion ≤1m for ≤30 minutes with all seals/glands installed |
| Rated pressure | 86–106kPa |
| BMS Protection Values | |
| Charge overcurrent protection | 180A ±2A with 5-second delay |
| Discharge overcurrent protection | 250A ±2A with 5-second delay |
| Charge high-temperature protection / release | 55°C / 53°C |
| Charge low-temperature protection / release | 0°C / 5°C with heating |
| Discharge high-temperature protection / release | 55°C / 53°C |
| Discharge low-temperature protection / release | -20°C / -17°C |
| Balancing and monitoring | Embedded BMS supervises cell voltage, current, temperature, protection, and balancing behavior |
| Lifecycle and Published Listings | |
| Cycle life | 3,500+ cycles to 70% end-of-life capacity (25°C) |
| End-of-life test capacity | 70% |
| Published cell listings / standards | UL1642, UL9540A, IEC 62619:2022 |
| Other published compliance | CE and RoHS; UN 3480, Class 9 (transport) |
| Published fuse-related listing | UL60691 fuse component listed on product page |
Ratings are from the C24230A-A spec sheet, technical data sheet and user manual (Rev V02, October 2026), at 25°C unless noted.
Installation and commissioning note
Secure the battery first, then engineer conductors, protection, precharge, charging, communications, and documentation.
Install on a flat rigid surface with service access to terminals, the fuse area, switch, and communication ports. Use approved restraints, short protected source conductors, appropriate busbars and lugs, controlled precharge for large capacitive loads, and equal-length conductors in parallel banks. Commission Victron communications, DIP settings, current limits, charging voltages, alarms, and module counts before placing loads into service.
Epoch 24V 230Ah V2-T Elite Battery FAQs
Common questions about the Class-T fuse, Victron setup, heating, IP67 protection, inverter sizing, and bank expansion.
What does “V2-T” mean, and why is the Class-T fuse important?
The V2-T design adds a user-serviceable 300A Eaton Class T fuse to the V2 Elite platform. The C24230A-A uses an Eaton Bussmann JJN-300 rated at 300A with a 20kA interrupting rating at 160V DC, under a protected service cover on the lid. It reduces fault energy at the battery outlet, but it does not replace the main disconnect, downstream conductor protection, branch fusing, or the rest of a code-compliant system design.
If the internal Class-T fuse opens, is the battery ruined?
No. The fuse is replaceable through the protected service-access area. Isolate every source and load, open the main disconnect, verify the system is de-energized, identify and correct the fault, and replace the fuse only with the exact approved model and rating. Restore all covers and seals before returning the battery to service; qualified service is strongly recommended.
Does the 24V V2-T connect directly to a Victron system?
Yes, when installed with Epoch's specified communication harness and configuration. The battery communicates at 500kbit/s over CAN. Connect the designated grey RJ45 lead to the appropriate BMS-Can or configurable VE.Can port on a compatible Cerbo GX or Ekrano GX, set the port as instructed, enable DVCC, and select Epoch as the controlling BMS and battery monitor. Do not assume every generic RJ45 cable has the required battery-side pinout.
Can I connect these batteries in series or parallel?
The C24230A-A user manual supports up to two batteries in series (51.2V nominal, 58.0V at full charge) or up to sixteen in parallel (3,680Ah). Mixed series-parallel banks are not supported. Use C24230A-A batteries of the same age, capacity and state of charge (fully charge each one on its own first), set the DIP switches for the bank, and follow the manual for the selected topology.
How large can a parallel V2-T battery bank become?
Sixteen 5.888kWh batteries provide about 94.21kWh of nominal stored energy and 3,680Ah at 25.6V nominal. Every battery output is a separate source and requires an engineered connection to common busbars, equal-length conductors, appropriate source and branch protection, secure mounting, communication configuration, and professional commissioning.
How does internal self-heating work in freezing conditions?
The battery includes a 153.6W heater controlled by the BMS. The user manual lists low-temperature charge protection at 0°C, heater activation during charging at 5°C, and heater deactivation at 10°C. Available incoming charge energy warms the cells before normal charging proceeds. Charging equipment must still be programmed correctly and provide enough current for heating and charging.
Is the battery completely waterproof?
No. The enclosure is IP67 rated—dust-tight and tested for temporary immersion up to 1 meter for up to 30 minutes when all seals and glands are correctly installed. It is not rated for water jets, pressure washing or continuous submersion. Install the battery where it stays dry in normal use, and make sure all harness connectors are fully seated.
What size inverter can one 24V 230Ah V2-T battery support?
At 25.6V nominal and 115A continuous discharge, the battery provides approximately 2.94kW of nominal DC output before inverter losses. Inverter DC input current ≈ AC load ÷ (25.6V × inverter efficiency): a 2,000W load through a 90%-efficient inverter draws about 87A. If an inverter's continuous DC input can exceed 115A, add batteries in parallel. Final inverter sizing must account for efficiency, surge demand, cable voltage drop, ambient temperature, precharge requirements, downstream protection, and the battery's current limits.
Does the built-in fuse make the installation ABYC compliant?
No single component makes an entire installation ABYC compliant. The integrated Class T fuse reduces fault energy at the battery outlet but does not replace the main fuse, disconnect or branch protection; compliance depends on the complete system—including disconnect location, unfused conductor length, conductor ampacity, overcurrent protection, ignition-protection requirements where applicable, securement, routing, labeling, grounding, and qualified installation.
What can I monitor through Bluetooth?
The Epoch Cloud app (iOS and Android) shows state of charge, cell voltage, temperature, charge and discharge cycles and system health alerts, over Bluetooth 4.0 through the included battery gauge (stay within about 10 m). The gauge also shows state of charge. In a Victron-managed system, the GX device becomes the central view for battery and system data.
What are the dimensions and weight?
The user manual lists the C24230A-A at 20.86 inches long by 8.65 inches wide by 12.06 inches high, with a weight of 98.9 pounds. It uses M8 terminals with a published terminal torque of 12N·m (8.85lb-ft). Confirm compartment clearance, service access, cable bend radius, and mounting hardware before ordering.
