Name: NW Conversions 16 Gallon Transit Undercarriage Water Tank (TR-UC-16)
Brand: GoCode
SKU: NWT0239
Price: 299.00 USD
Availability: InStock

A flexible undercarriage tank that fits passenger or driver side — and works with factory Transit Trail running boards.

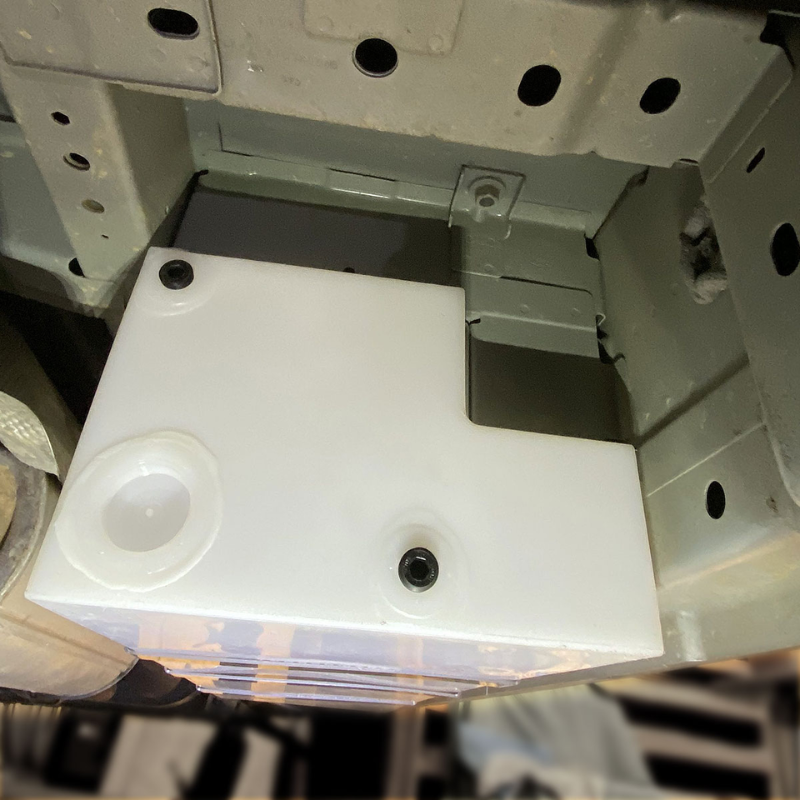

The TR-UC-16 is designed to slot under the Ford Transit’s undercarriage with three laser-cut stainless steel mounting straps and all required hardware included. It fits on the passenger side under the slider door, or on the driver side next to the fuel tank — giving you placement flexibility depending on your build layout. Suitable for fresh or grey water.

Built from food-grade, BPA-free polyethylene and certified to IAPMO TS-4 / RVIA standards. Made in the USA by NW Conversions.

Fits Transit Trail with factory running boards.

Fits:

Now confirmed: all Transit wheelbases

∙ Ford Transit 130", 148″, & 148″ EXT (2014–present)

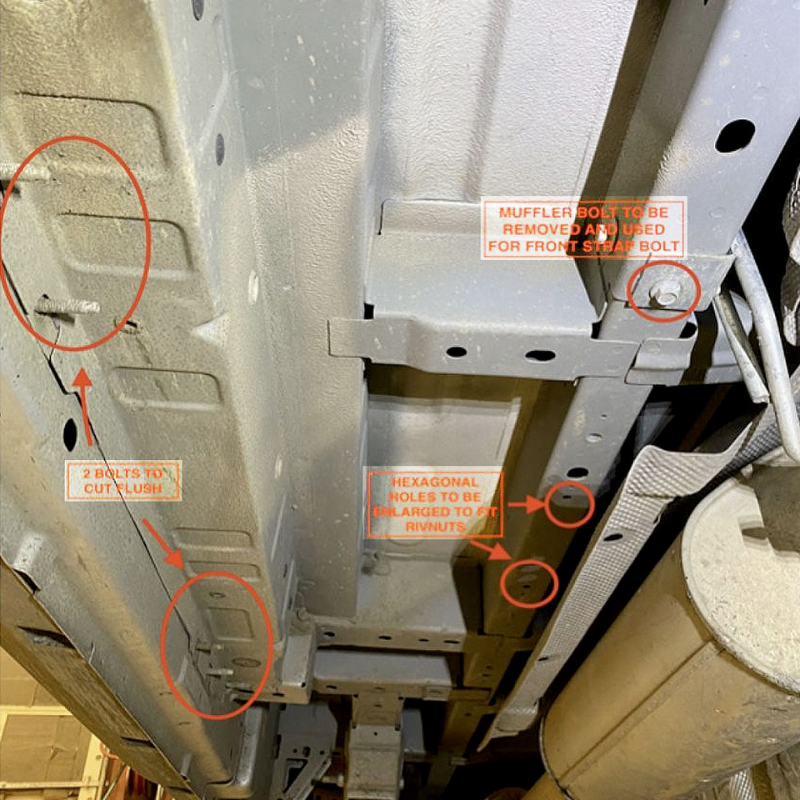

∙ Mounts on passenger side (under slider) or driver side (next to fuel tank)

Specs:

Weight: 14 lbs

Capacity	16 gallons

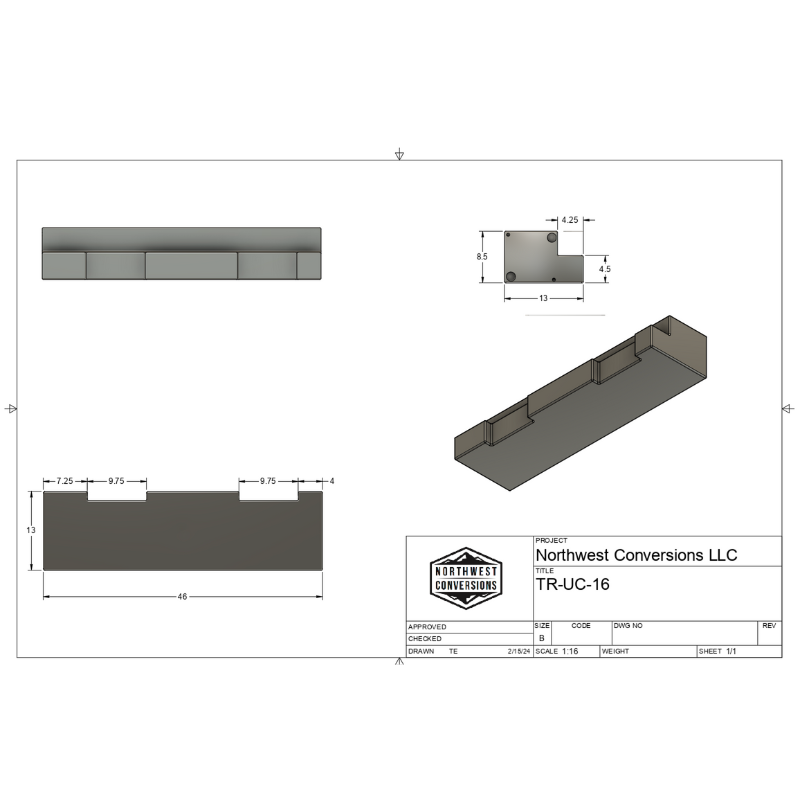

Dimensions	48″ L × 13″ W × 8.5″ H
Material	BPA-free, food-grade polyethylene
Certifications	IAPMO TS-4 / TEI Listed / RVIA Approved
Made in	USA
System type	Non-pressurised — must be vented
Hardware included	(3) stainless steel laser-cut mounting straps, 3/8″ hardware, 3/8″ rivnuts. Rivnut tool required — not included.
Running board compatibility	Fits Transit Trail with factory running boards. Also compatible with Owl running boards. May require minor bracket modification with other aftermarket boards.
