DD-EX2 Mid-Sized Double Deck System
Double The Carrying Capacity Of Mid-Sized Cargo Vans

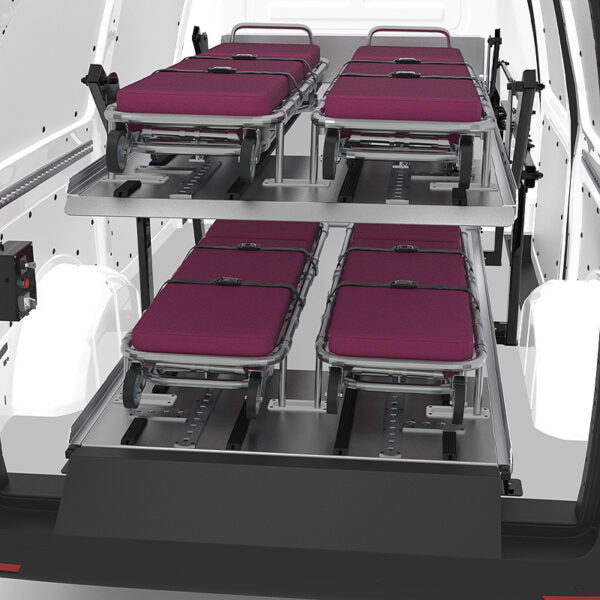

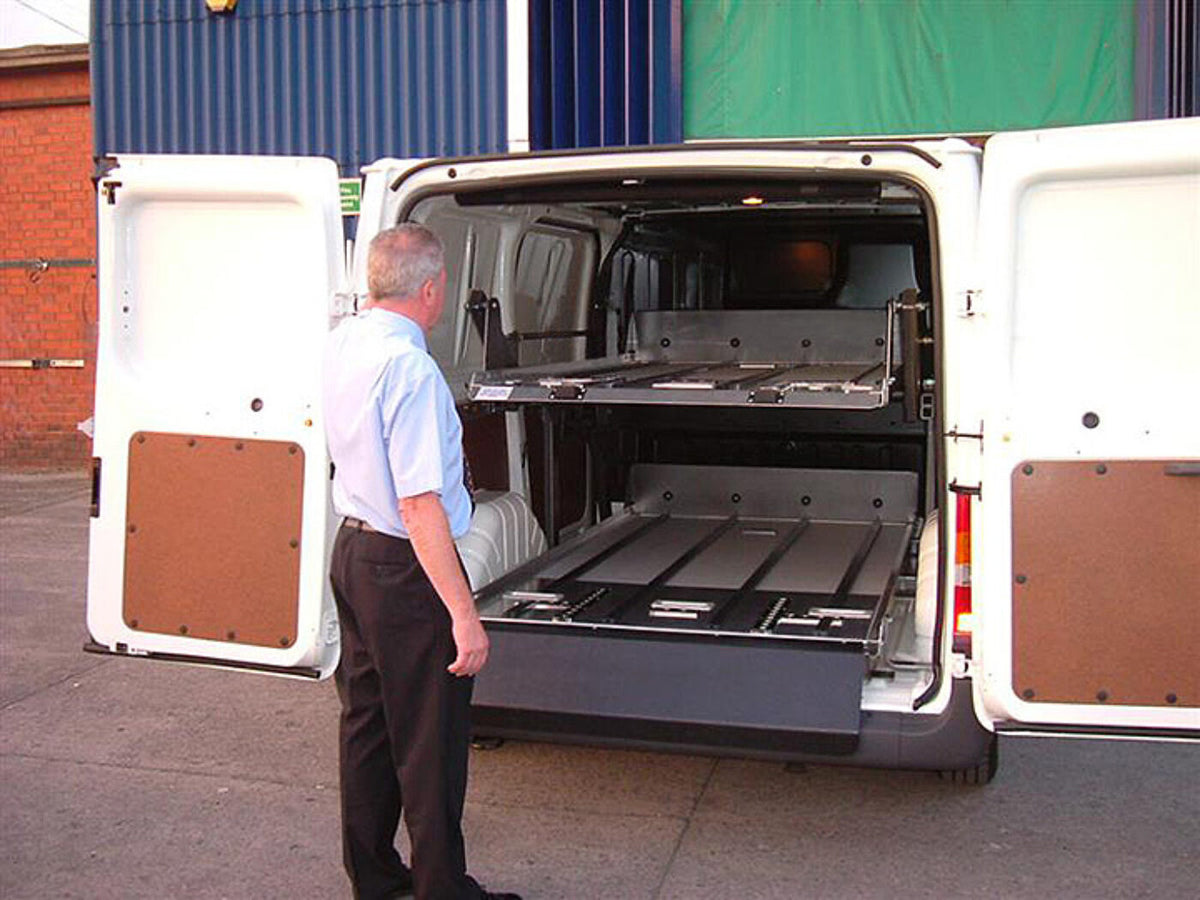

The DD-EX2 is the only double deck system engineered to fit a mid-sized cargo van. The system allows four cots, three cremation containers, or two air trays to be transported safely by one person. The system increases vehicle efficiency by doubling the carrying capacity while minimizing mileage costs required for multiple transport trips.

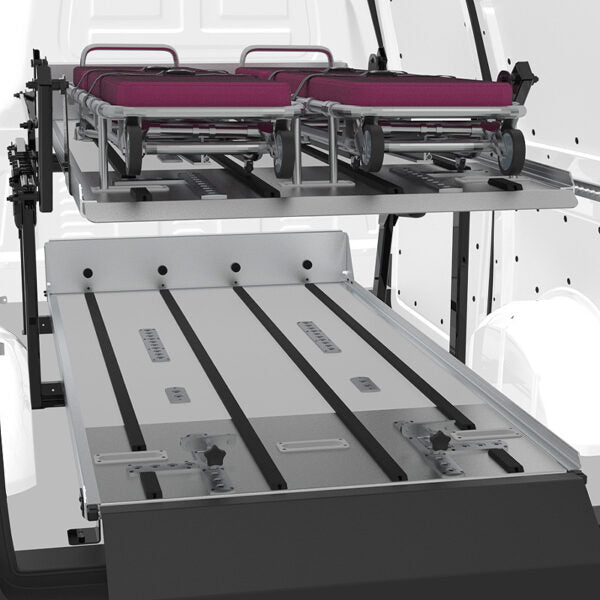

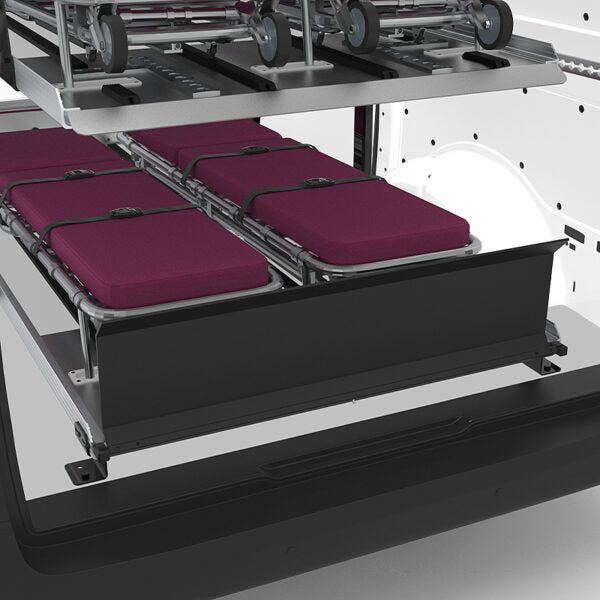

The powered upper deck raises and lowers within seconds, enabling one operator to easily load and transport. Interchangeable and adjustable bier pins and polyethylene glide strips allow the management of different tray and container sizes on both decks. Recessed cot cups allow for the safe secure transport of stretchers.
From capability to overall cost, the DD-EX2 is built to serve a mortician’s bottom line. The system will prove to increase operation efficiency and maintain the highest standards of professionalism for funeral homes with transportation and cremation services.
Specifications
| Width | Length | Max Load Width | Max Load Length | Upper Deck Weight Capacity | Installation | Weight | |
| 7223B003 | 60.5 in | 91.25 in | 48.73 in | 87.98 in | 600 lbs | Bolted Down | 536 lbs |
| 7223B001 | 60.5 in | 99.25 in | 49.25 in | 95.98 in | 600 lbs | Bolted Down | 560 lbs |
Note: The upper deck has a maximum load width of 47.23 inches and a maximum load length of 81.48 inches (7223B003) or 90.48 inches (7223B001).
Product Codes
| Model | Year | Wheelbase (in.) | Product Code | |
|---|---|---|---|---|
| Mercedes-Benz Metris SWB | Cargo Van | 2016-Present | 126 | 7223B003 |
| Mercedes-Benz Metris LWB | Cargo Van | 2016-Present | 135 | 7223B001 |
DD-EX2 (7223B001 & 7223B003)
