LSR90 180° Swivel
Unmatched Flexibility For Loading and Unloading Cargo

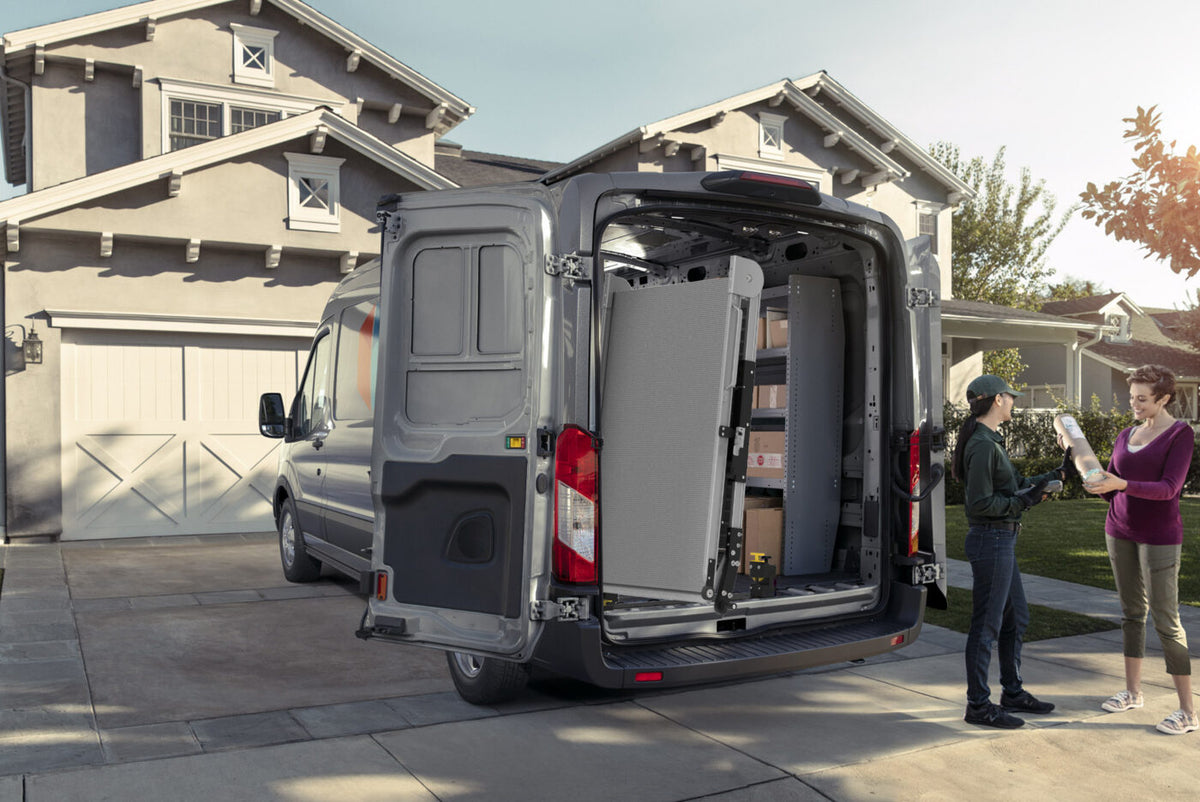

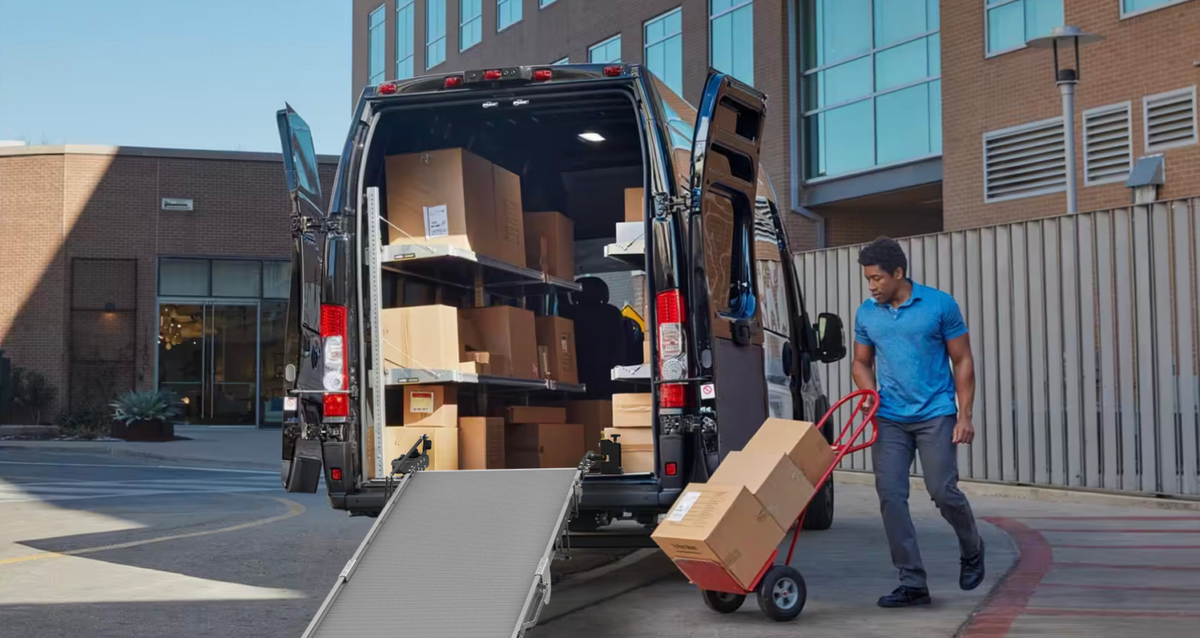

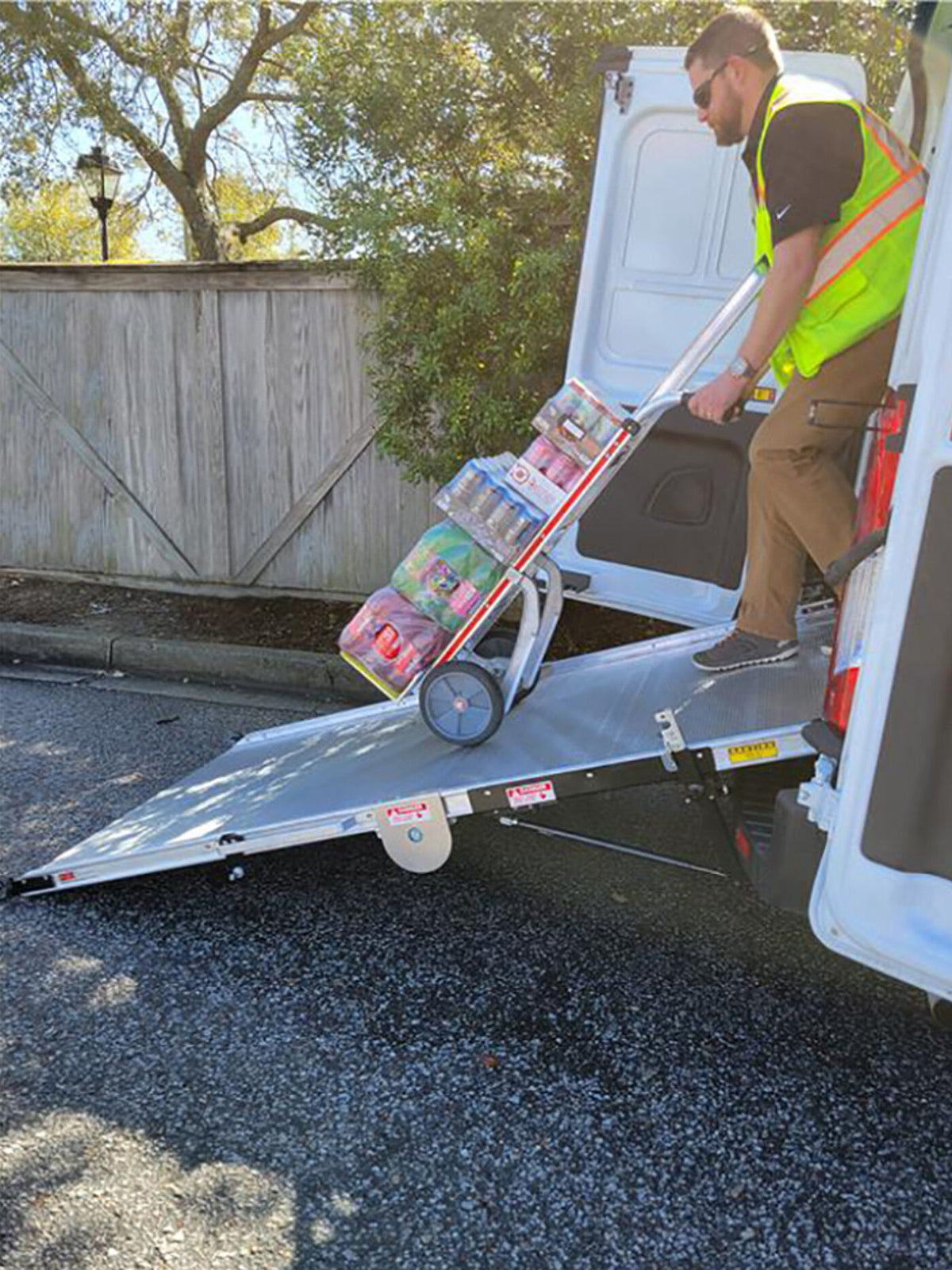

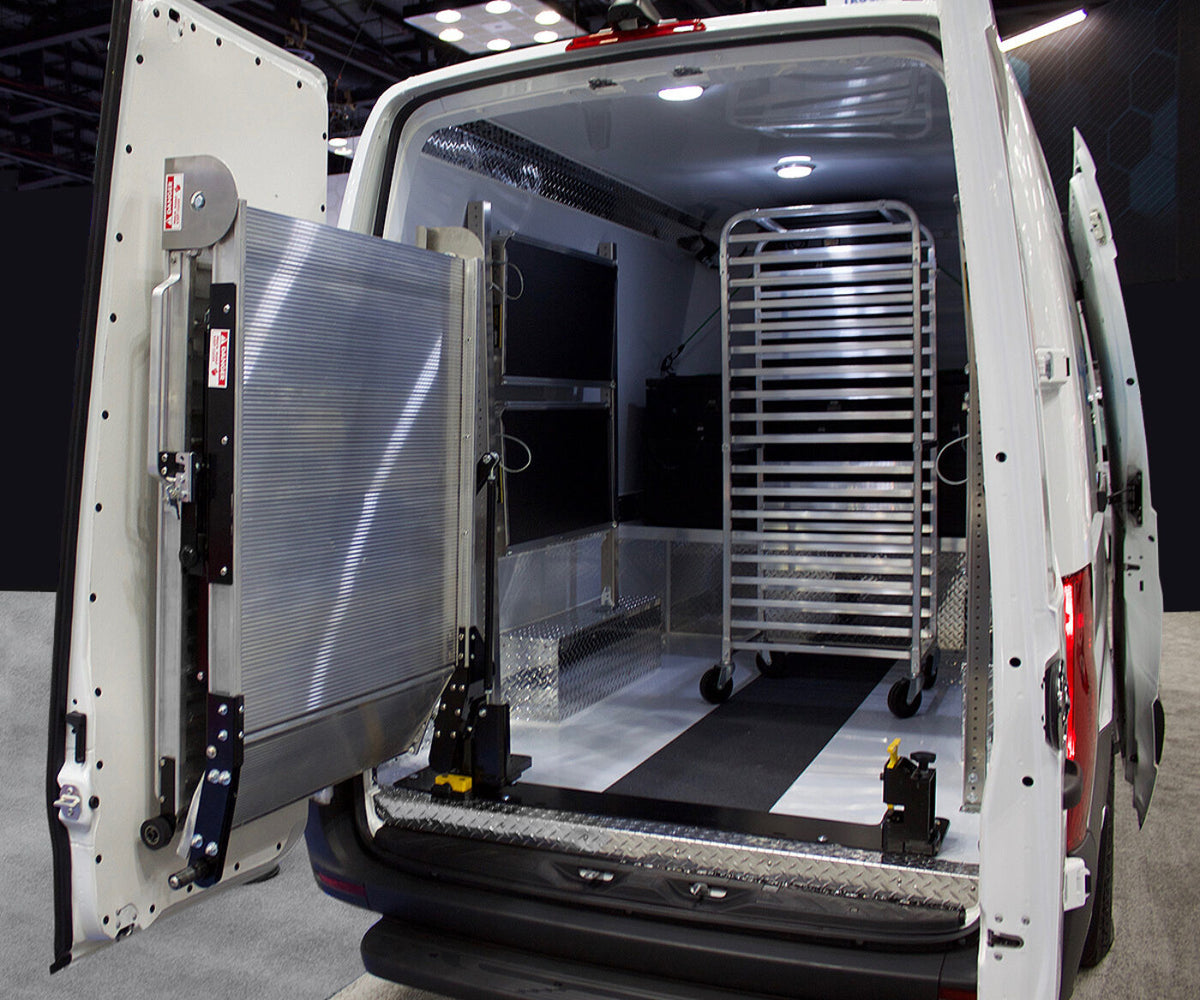

The swivel design of the LSR90 enables the ramp to swing like a door, up to 180-degrees. The ramp’s swing action gives users two storage positions and complete open access to the cargo hold. The swivel ramp mounts in the rear stored position like a traditional folding ramp, but can swing to also be stored inside, behind the wheel well – providing options for instances when a loading ramp isn’t needed. When not in use for loading or unloading, the ramp rotates outside of the vehicle for unobstructed access.
The LSR90 ramp also incorporates safety and efficiency into its design. The primary latching module can be easily removed to provide open floor space, and the quick-release lever enables the ramp to be unlatched when in the wheel well position, without requiring users to bend, lift or enter the vehicle.
The LSR90 Series Swivel Ramp weighs between 157 to 225 pounds and its weight capacity ranges between 1,000 and 1,500 pounds, depending on the model.
Specifications
| Weight (base unit) | Mounting | Load Width | Length | Capacity | |
| LSR90 | 157-225 lbs | Flat Floor Mount | 30, 36, or 47 in | 99, 108, or 117 in | 1000-1500 lbs |
Note: The width of the ramp is 2 ¾ inches wider than the load width. All bi-fold ramps collapse to roughly 7.5 inches wide.
Product Codes
| Roof Height | Capacity (lbs.) | Stored H (in.) | 30 in. W | 36 in. W | 47 in. W | |
|---|---|---|---|---|---|---|
| Ford Transit (99 in. LSR90) | Medium & High | 1,500 | 58.75 | LSR90-30-99 | LSR90-36-99 | LSR90-47-99 |
| Ford Transit (108 in. LSR90) | Medium & High | 1,250 | 63 | LSR90-30-108 | LSR90-36-108 | |
| Ford Transit (117 in. LSR90) | High | 1,000 | 67.75 | LSR90-30-117 | LSR90-36-117 | |
| Mercedes-Benz Sprinter (99 in. LSR90) | Standard & High | 1,500 | 58.75 | LSR90-30-99 | LSR90-36-99 | LSR90-47-99 |
| Mercedes-Benz Sprinter (108 in. LSR90) | High | 1,250 | 63 | LSR90-30-108 | LSR90-36-108 | |
| Mercedes-Benz Sprinter (117 in. LSR90) | High | 1,000 | 67.75 | LSR90-30-117 | LSR90-36-117 | |
| Nissan NV (99 in. LSR90) | High | 1,500 | 58.75 | LSR90-30-99 | LSR90-36-99 | LSR90-47-99 |
| Nissan NV (108 in. LSR90) | High | 1,250 | 63 | LSR90-30-108 | LSR90-36-108 | |
| Nissan NV (117 in. LSR90) | High | 1,000 | 67.75 | LSR90-30-117 | LSR90-36-117 | |
| RAM ProMaster (99 in. LSR90) | Standard & High | 1,500 | 58.75 | LSR90-30-99 | LSR90-36-99 | LSR90-47-99 |
| RAM ProMaster (108 in. LSR90) | High | 1,250 | 63 | LSR90-30-108 | LSR90-36-108 | |
| RAM ProMaster (117 in. LSR90) | High | 1,000 | 67.75 | LSR90-30-117 | LSR90-36-117 |
Part nos. 78592101, 78592102, 78592103, 78592104, 78592111, 78592112, 78592121, & 78592122
