LB10- Side Loading Ramp
Side Door Loading Ramp

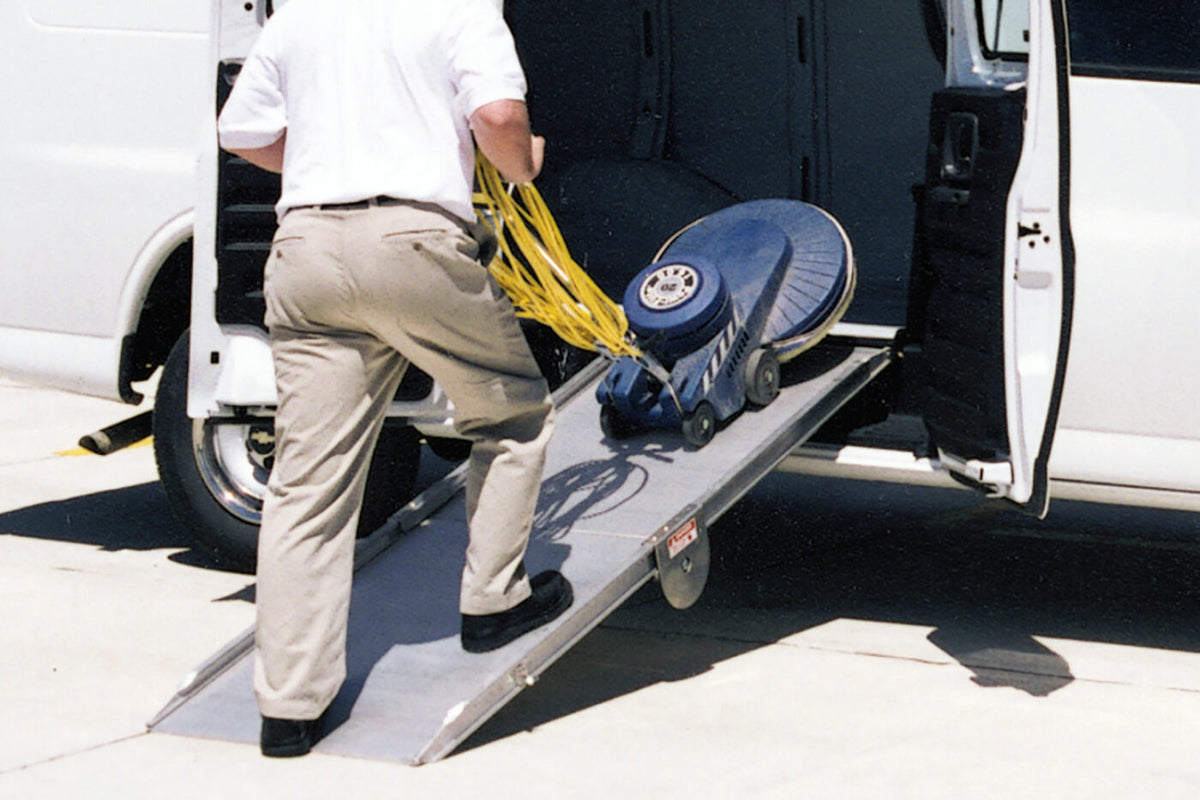

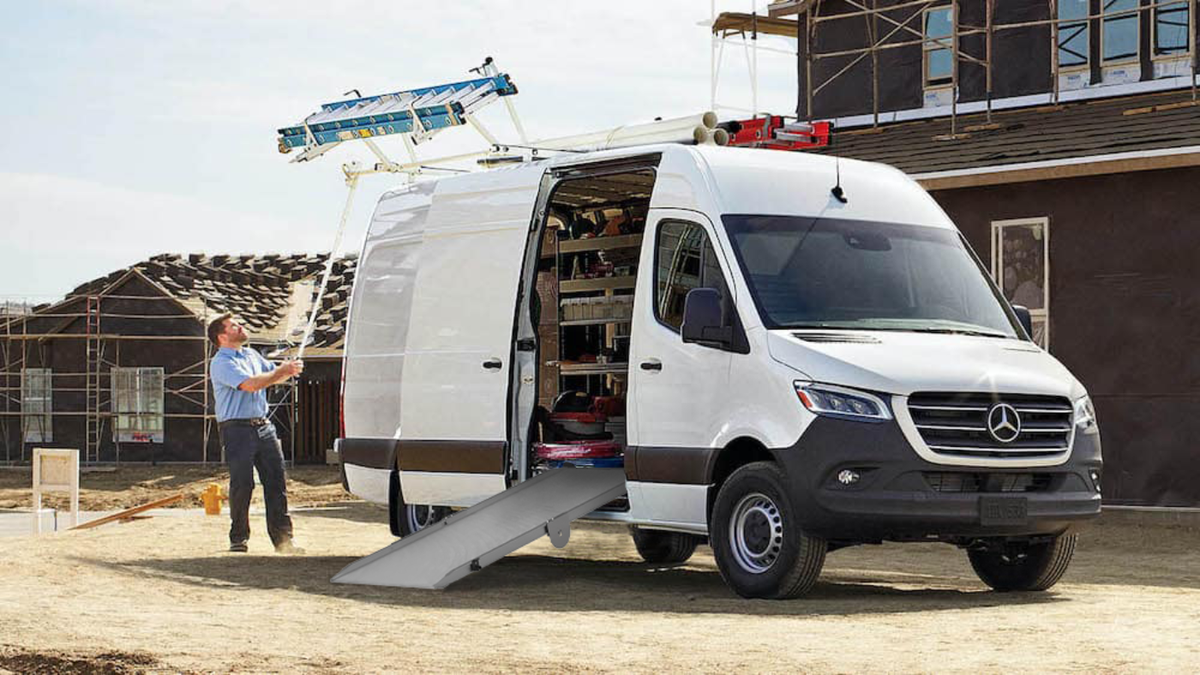

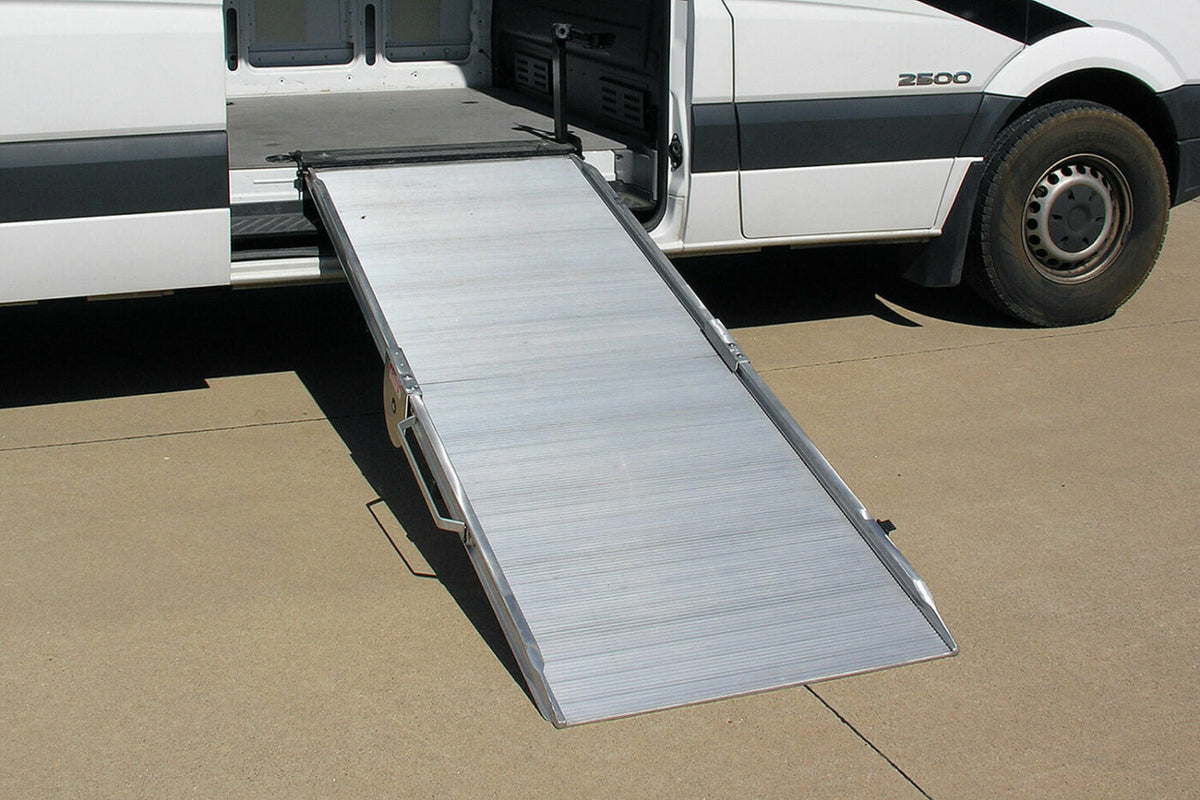

The low-profile LB10 side door ramp mounts in commercial vans with a sidestep and stores vertically in the “dead” space above the step. The user-friendly design is deployable within a few seconds for use, making users more efficient. The LB10 series weighs between 82 to 108 pounds and its weight capacity is 1,000 pounds. Every LB10 is made from high-strength aluminum and engineered for simple installation and ease of use. Opening and closing the ramp occurs within seconds and the ramp can be stowed vertically in a low-profile storage position. By stowing vertically inside the vehicle’s side step, the ramp is not exposed to the weather or road debris and takes up less than 12 inches of horizontal space.
Specifications
| Weight (base unit) | Mounting | Load Width | Length | Capacity | |
| LB10 | 82-108 lbs | Side Step Mount | 24, 30, or 36 in | 81 or 90 in | 1000 lbs |
Note: The width of the ramp is 2 ¾ inches wider than the load width. All bi-fold ramps collapse to roughly 7.5 inches wide.
Product Codes
| Roof Height | Capacity (lbs.) | Stored H (in.) | 24 in. W | 30 in. W | 36 in. W | |
|---|---|---|---|---|---|---|
| Chevrolet Express (81 in LB10) | Standard | 1,250 | 46.5 | LB10-24-81 | LB10-30-81 | |
| Ford Econoline (81 in. LB10) | Standard | 1,250 | 44.75 | LB10-24-81 | LB10-30-81 | |
| Ford Transit (81 in. LB10) | Low, Medium, High | 1,250 | 44.75 | LB10-24-81 | LB10-30-81 | |
| Ford Transit (90 in. LB10) | Low, Medium, High | 1,250 | 48.75 | LB10-24-90 | LB10-30-90 | |
| Nissan NV (81 in. LB10) | Standard & High | 1,250 | 44.75 | LB10-24-81 | LB10-30-81 | |
| Nissan NV (90 in. LB10) | Standard & High | 1,250 | 48.75 | LB10-24-90 | LB10-30-90 | |
| Mercedes-Benz Sprinter (81 in. LB10) | Standard & High | 1,250 | 44.75 | LB10-24-81 | LB10-30-81 | LB10-36-81 |
| Mercedes-Benz Sprinter (90 in. LB10) | Standard & High | 1,250 | 48.75 | LB10-24-90 | LB10-30-90 | LB10-36-90 |
Storage: Stores in the dead space above the step
